Semiconductor Heater 100W
CHR 100
Civaux heaters are designed for low energy consumption, ensuring operational efficiency without excessive electricity costs. The self-regulating PTC technology adjusts power usage based on ambient temperature, preventing unnecessary energy waste.
Semiconductor Heater 100W

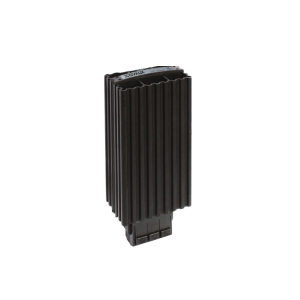

Civaux Semiconductor Heater CHR100 (100W) is designed to prevent condensation and maintain stable temperatures in electrical enclosures. Its extruded aluminium profile ensures efficient heat distribution through a chimney effect, while the PTC resistor heating element provides temperature-limited, energy-efficient performance. With a wide voltage range (120–240V AC/DC), pressure clamp connectors, and DIN rail clip fixing, installation is quick and reliable. Built for permanent operation, this compact heater delivers dependable performance in harsh environments.
Semiconductor Heater 100W
Features
- Pressure clamp connectors
- Dynamic heating up
- Wide voltage range
- Energy saving
- Clip fixing & Quick installation
download
Technical Details
Overview technical data
| Operating voltage | 120 – 240 V AC/DC (min. 110 V, max. 265 V) |
|---|---|
|
Heating Power |
100 W
|
|
Maximum allowable current |
4.5 A |
|
Heating element |
PTC resistor – temperature limitig |
|
Heater body |
Extruded aluminum profile, anodized
|
|
Contact type |
Change – over contact ( relay) |
|
Service Life |
VDE: NO / NC >15,000 cycles UL: NO / NC >30,000 cycles |
|
Connection |
3 pressure clamps for stranded wire 0.5 – 1.5 mm2 (with wire end ferrule) and rigid wire 0.5 – 2.5 mm 2 |
|
Connection Casing |
Plastic according to UL94 V-0,black
|
|
Mounting |
Clip for 35 mm DIN rail , EN 60715 |
|
Fitting Position |
Vertical airflow ( air outlet up, connection on bottom) |
|
Operating / Storage temperature |
– 45 to 700C (- 49 to + 1580 F ) |
|
Operating / Storage humidity |
max. 90% RH (non- condensing) |
|
Protection type / Protection Class |
IP 20 / | (earthed) |
