Anti-condensation heaters
Keeps electrical components dry and corrosion-free.
Civaux heaters are designed for low energy consumption, ensuring operational efficiency without excessive electricity costs. The self-regulating PTC technology adjusts power usage based on ambient temperature, preventing unnecessary energy waste.
Our Product
Anti-condensation heaters
These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature may not fall below a minimum value. The aluminum profile heater body design has a chimney effect and distributes the heat evenly. The heaters are designed for permanent operation. Pressure clamp connectors save time and simplify installation.
- Pressure clamp connectors
- Dynamic heating up
- Wide voltage range
- Energy saving
- Clip fixing & Quick installation
Details
Engineered for Performance
| Operating voltage | 120 – 240 V AC/DC (min. 110 V, max. 265 V) |
|---|---|
|
Heating Power |
15 W, 25 W, 30 W, 50 W, 60 W, 75 W, 100 W, 150 W.
|
|
Maximum allowable current |
3 A
|
|
Heating element |
PTC resistor – temperature limiting
|
|
Heater body |
extruded aluminum profile, anodized
|
|
Connection casing |
Plastic according to UL94 V-0, black
|
|
Mounting |
Clip for 35 mm DIN rail, EN 60715
|
|
Fitting position |
Vertical airflow (air outlet up, connection on bottom)
|
|
Operating/Storage temperature |
-45°C to +70°C
|
|
Operating/Storage humidity |
max. 90 % RH (non-condensing)
|
|
Protection type / Protection class |
IP20 / I (earthed)
|

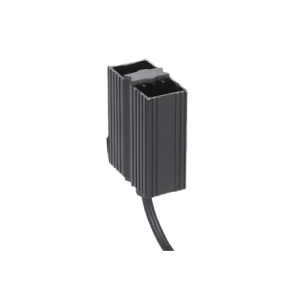

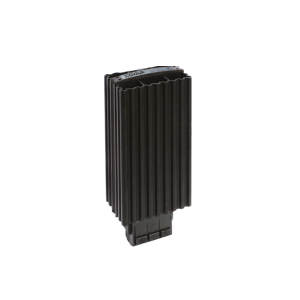

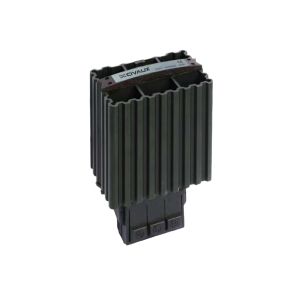

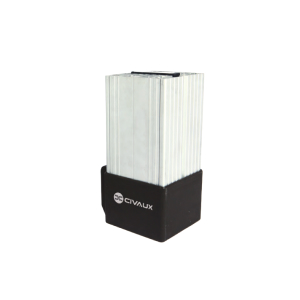

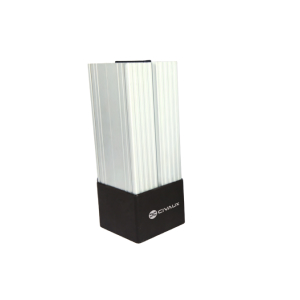

Product Gallery
Our Products
Explore More Products
to product finder
Indication lamp & switches

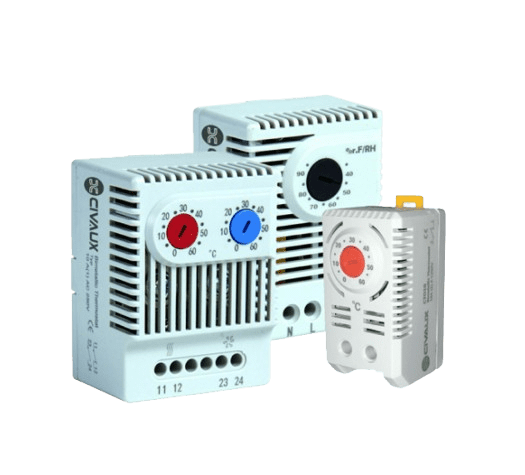

Regulators

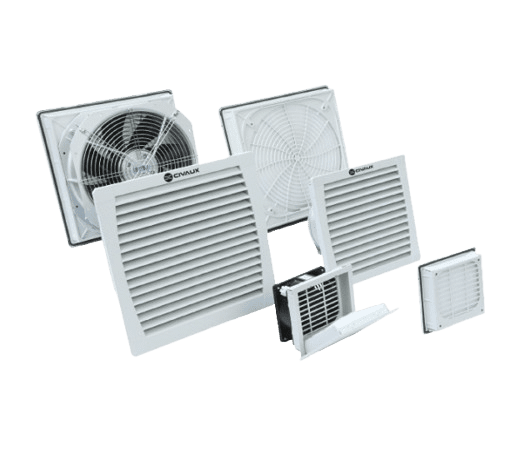

Panel Fan & Filters

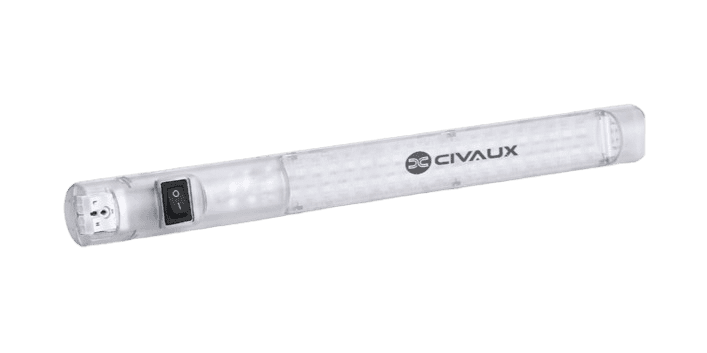

Cabinet LED lamp

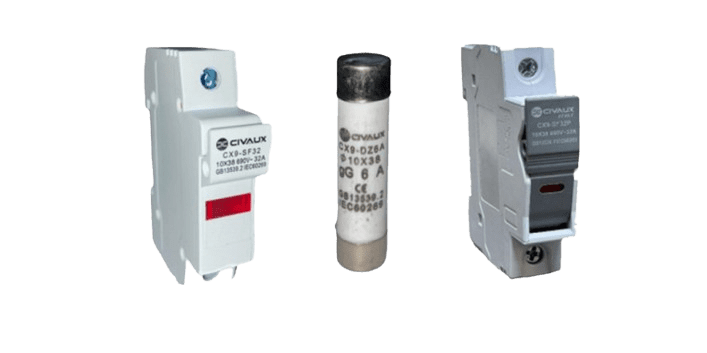

Fuse base & Fuse link
