Semiconductor Panel Heater 150W
CHR 150
Civaux heaters are designed for low energy consumption, ensuring operational efficiency without excessive electricity costs. The self-regulating PTC technology adjusts power usage based on ambient temperature, preventing unnecessary energy waste.
Semiconductor Pnel Heater 150W

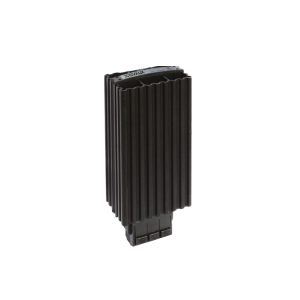

The Civaux CHR150 Panel Heater (150W) is a compact and efficient solution for protecting sensitive electrical equipment from condensation, frost, and humidity damage. Using a self-regulating PTC heating element combined with an aluminium housing, it distributes warmth evenly inside enclosures while keeping energy use low. Its wide voltage compatibility (120–240V AC/DC) and tool-free DIN rail mounting make it easy to integrate into any control cabinet or switchgear system. Built for continuous operation, the CHR150 offers long-lasting performance with minimal maintenance.
Semiconductor Panel Heater 150W
Features
- Pressure clamp connectors
- Dynamic heating up
- Wide voltage range
- Energy saving
- Clip fixing & Quick installation
download
Technical Details
Overview technical data
| Operating voltage | 120 – 240 V AC/DC (min. 110 V, max. 265 V) |
|---|---|
|
Heating Power |
150 W
|
|
Maximum allowable current |
9 A |
|
Heating element |
PTC resistor – temperature limitig |
|
Heater body |
Extruded aluminum profile, anodized
|
|
Contact type |
Change – over contact ( relay) |
|
Service Life |
VDE: NO / NC >15,000 cycles UL: NO / NC >30,000 cycles |
|
Connection |
3 pressure clamps for stranded wire 0.5 – 1.5 mm2 (with wire end ferrule) and rigid wire 0.5 – 2.5 mm 2 |
|
Connection Casing |
Plastic according to UL94 V-0,black
|
|
Mounting |
Clip for 35 mm DIN rail , EN 60715 |
|
Fitting Position |
Vertical airflow ( air outlet up, connection on bottom) |
|
Operating / Storage temperature |
– 45 to 700C (- 49 to + 1580 F ) |
|
Operating / Storage humidity |
max. 90% RH (non- condensing) |
|
Protection type / Protection Class |
IP 20 / | (earthed) |
