CRF40D Roof Fan and Filter

The higher-airflow model in the CRF roof-fan range. CRF40D uses the same listed 400 mm square footprint as CRF40, with airflow up to 1340 m³/h without a filter mat.

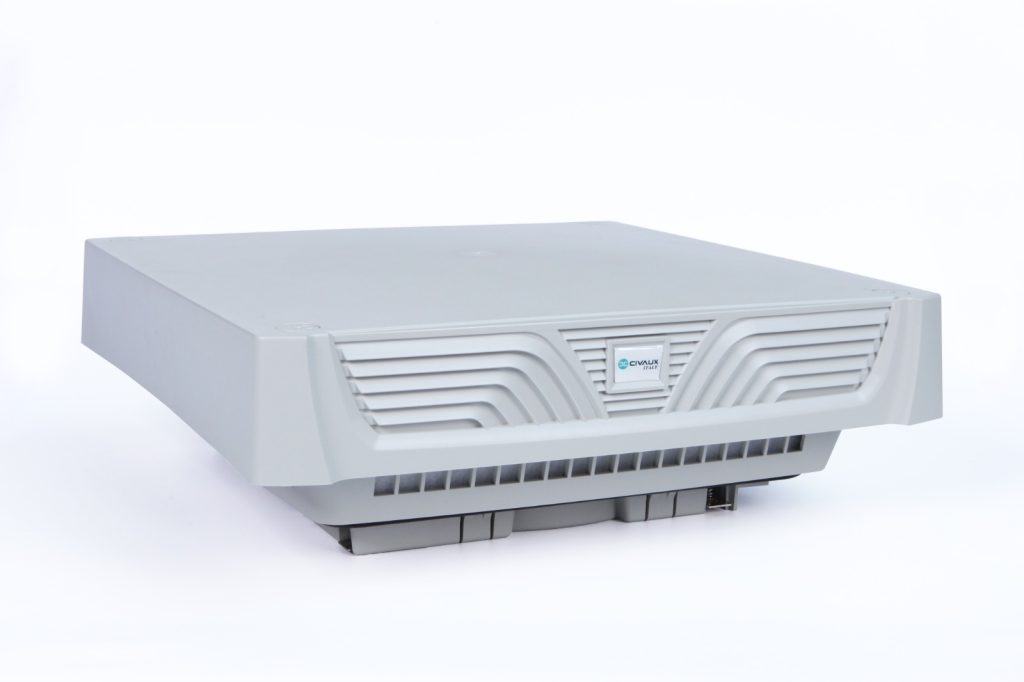

Civaux CRF40D roof fan
Free-blowing airflow · no mat1200 / 1340 m³/h
ProtectionIP22 without mat / IP55 with mat
Panel cut-out258 × 258 mm

DESIGNED AROUND THE PANEL

Ventilation from the roof.

Centrifugal airflow

Roof extraction paired with an appropriate inlet filter lower on the enclosure.

Accessible mounting

Mounting system allows the fan to be secured from inside or outside the enclosure.

Filter access

Accessible filter mat and a polyurethane foam sealing gasket.

SPECIFICATIONS

Technical data.

ParameterSpecification
Available supply voltages230 V AC, 50/60 Hz; 115 V AC, 50/60 Hz
Free-blowing airflow without filter mat (IP22)1200 / 1340 m³/h
Airflow with filter mat (IP55)870 / 960 m³/h
ProtectionIP22 without mat / IP55 with mat
MotorCentrifugal fan with capacitor motor
Noise level71 dB
Operating temperature−20°C to +70°C

Paired AC figures are in 50/60 Hz order. Specifications reproduced from the 2026 catalogue, printed page 21.

Electrical parameterCatalogue value (50/60 Hz)
Rated current1.30 / 1.45 A
Power130 / 171 W

The catalogue merges the electrical rows across both voltage columns. Confirm the supply-specific current and power before selection.

INSTALLATION

Dimensions.

DimensionSize (mm)
Front width × height400 × 400
Panel cut-out258 × 258
Civaux CRF40D original catalogue dimensions
Original catalogue drawing. Dimensions in millimetres. Printed page 22.

MODEL SELECTION

Ordering options.

Colour230 V AC, 50/60 Hz115 V AC, 50/60 Hz
RAL 7032Confirm 230/240 V codeCRF40D.G115
RAL 7035Confirm 230/240 V codeCRF40D.W115

G denotes RAL 7032; W denotes RAL 7035. Confirm availability and the complete model code when ordering.

FAN & FILTER

Complete the assembly.

Filter arrangementCatalogue reference
Matching filterCRF40.EX.G / CRF40.EX.W

CRF roof fans require an appropriate inlet filter lower on the enclosure. The references above reproduce the catalogue’s “Exit Filter” row.

Civaux CRF40D roof fan

PRODUCT ENQUIRY

Specify your CRF40D.

Send your required quantity, supply voltage where applicable, protection rating and colour. Our team can help confirm the appropriate model and filter arrangement.
